There is a three bay garage made of solid structural timber KVH (spruce) kilin-dried to a
mximum moisture content of ~15%. It is an excellent alternative for a traditional garage and
much cheaper as well. This garage is designed to accommodate three cars with loft that can be converted into the outside room or office. The garage bays we can make equal size and we can add steps on the side of the garage to make an easy access to the loft room.
1. All our carports are made of solid structural wood KVH (spruce), all elements are planed and sanded smoothly
2. Post & main beams thicknesses 120x120mm or 140x140mm
3. Rafters thicknesses 80x160mm
4. Shaped or rounded edges giving you pleasant look and safety
5. To join separate parts of wooden carport we use mortise and tenon joint
6. Standard carport entrance height is 2.2m.

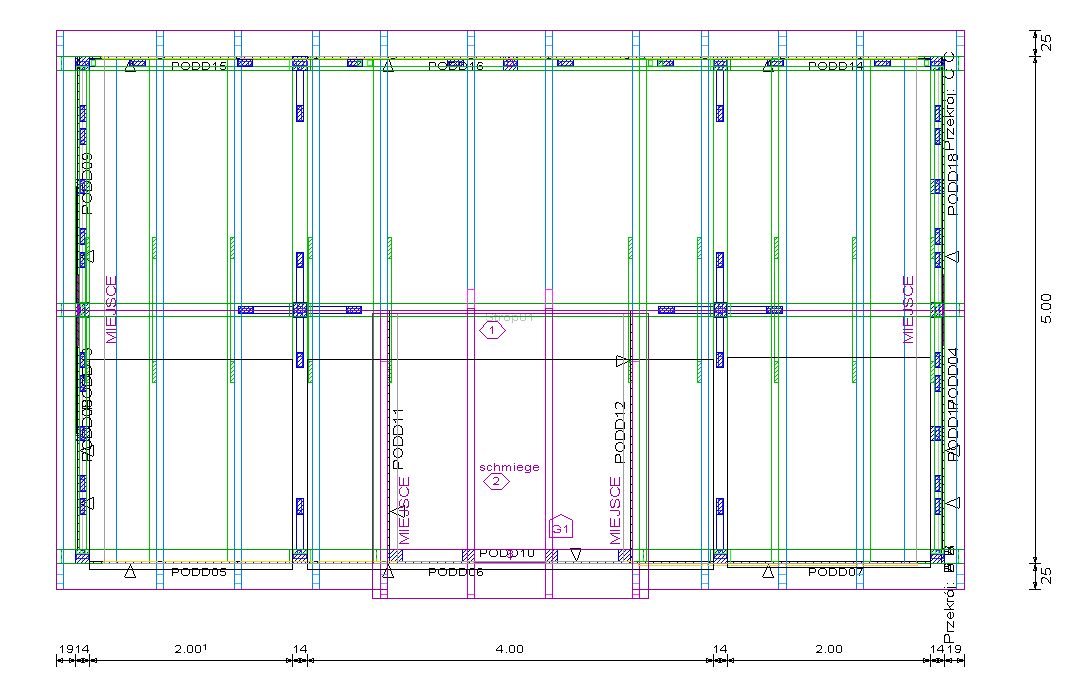

7. All carport drawings will be provided for the final customer approval
We can give you completely finish product with :
1. Factory paint using high quality wood stains (Remmers HK)
2. Roof cladding using 19 mm thickness tongue & groove board
3. Roof covering using felt shingles, cedar shingles, roof tiles, roofing felt
or roof slates.
4. Metal post holders for concrete base
5. Installation process
6. We can also customise this project to meet your requirements
To receive a quotation for this product please fill in the form bellow. If you want to customise this project please describe it in your enquiry, Thank you.
mbc001. 5x8m timber garage with loft
